动态路由协议eigrp和mpls的配置

2015-06-17

动态路由协议eigrp和mpls的配置

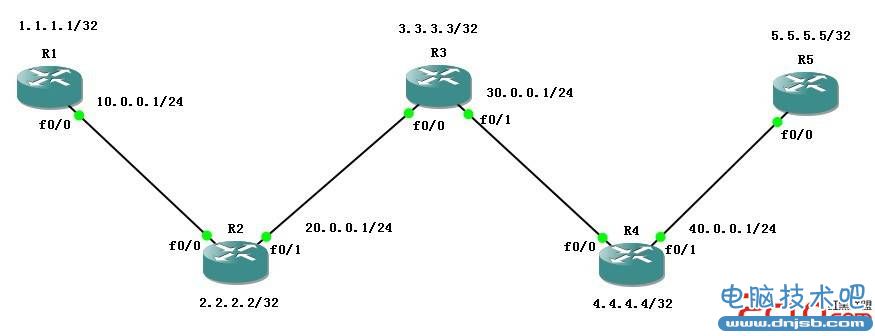

实验拓扑图：


配置：

R1:
en
conf t
hostname R1

int loop 0
ip add 1.1.1.1 255.255.255.255
no shut
exit
int fa0/0
ip add 10.0.0.1 255.255.255.0
no shut
exit

!配置eigrp
router eigrp 10
network 1.1.1.1 0.0.0.0
network 10.0.0.0 0.0.0.255

!关闭自动汇总
no auto-summary
exit

!配置MPLS
int fa0/0
mpls ip
exit

R2:
en
conf t
hostname R2

int loop 0
ip add 2.2.2.2 255.255.255.255
no shut
exit
int fa0/0
ip add 10.0.0.2 255.255.255.0
no shut
exit
int fa0/1
ip add 20.0.0.1 255.255.255.0
no shut
exit

!配置eigrp
router eigrp 10
network 2.2.2.2 0.0.0.0
network 10.0.0.0 0.0.0.255
network 20.0.0.0 0.0.0.255

!关闭自动汇总
no auto-summary
exit

!配置MPLS
int fa0/0
mpls ip
exit
int fa0/1
mpls ip
exit

R3:
en
conf t
hostname R3

int loop 0
ip add 3.3.3.3 255.255.255.255
no shut
exit
int fa0/0
ip add 20.0.0.2 255.255.255.0
no shut
exit
int fa0/1
ip add 30.0.0.1 255.255.255.0
no shut
exit

!配置eigrp
router eigrp 10
network 3.3.3.3 0.0.0.0
network 20.0.0.0 0.0.0.255
network 30.0.0.0 0.0.0.255

!关闭自动汇总
no auto-summary
exit

!配置MPLS
int fa0/0
mpls ip
exit
int fa0/1
mpls ip
exit

R4:
en
conf t
hostname R4

int loop 0
ip add 4.4.4.4 255.255.255.255
no shut
exit
int fa0/0
ip add 30.0.0.2 255.255.255.0
no shut
exit
int fa0/1
ip add 40.0.0.1 255.255.255.0
no shut
exit

!配置eigrp
router eigrp 10
network 4.4.4.4 0.0.0.0
network 30.0.0.0 0.0.0.255
network 40.0.0.0 0.0.0.255

!关闭自动汇总
no auto-summary
exit

!配置mpls
int fa0/0
mpls ip
exit
int fa0/1
mpls ip
exit

R5:
en
conf t
hostname R5

int loop 0
ip add 5.5.5.5 255.255.255.255
no shut
exit
int fa0/0
ip add 40.0.0.2 255.255.255.0
no shut
exit

!配置eigrp
router eigrp 10
network 5.5.5.5 0.0.0.0
network 40.0.0.0 0.0.0.255

!关闭自动汇总
no auto-summary
exit

!配置mpls
int fa0/0
mpls ip
exit

!查看mpls

show mpls forwarding-table
